Ming Yuan Tong DMR Radio

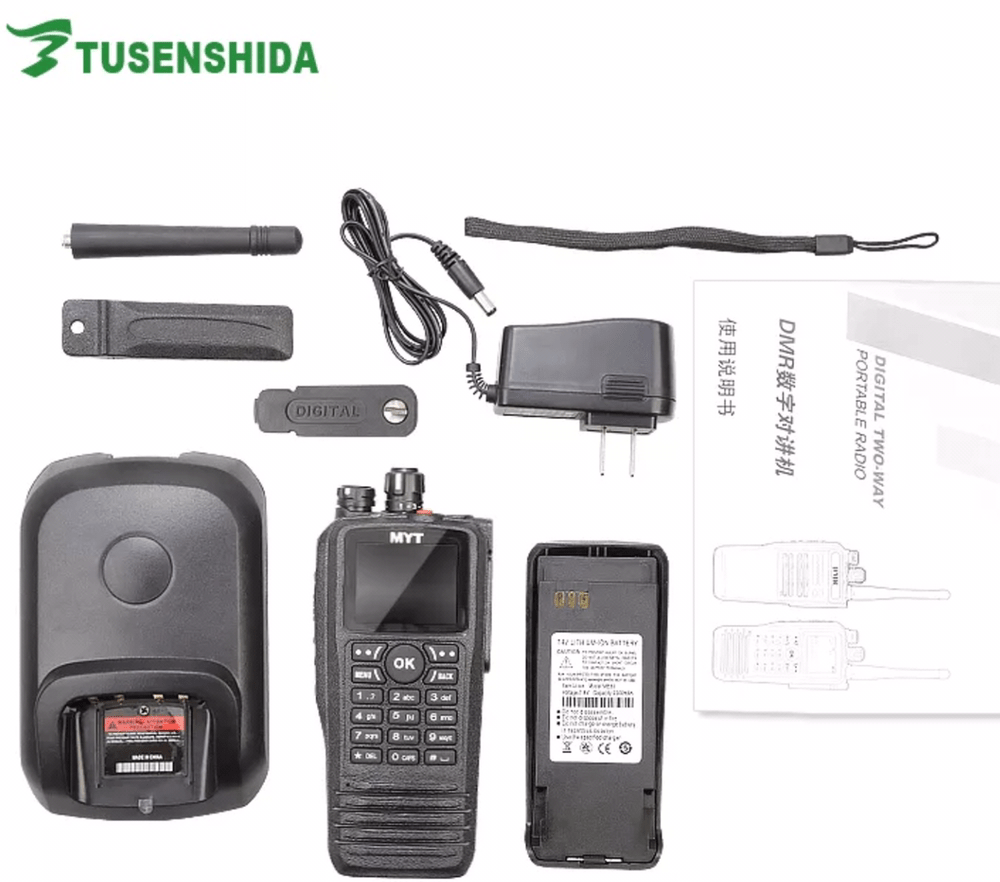

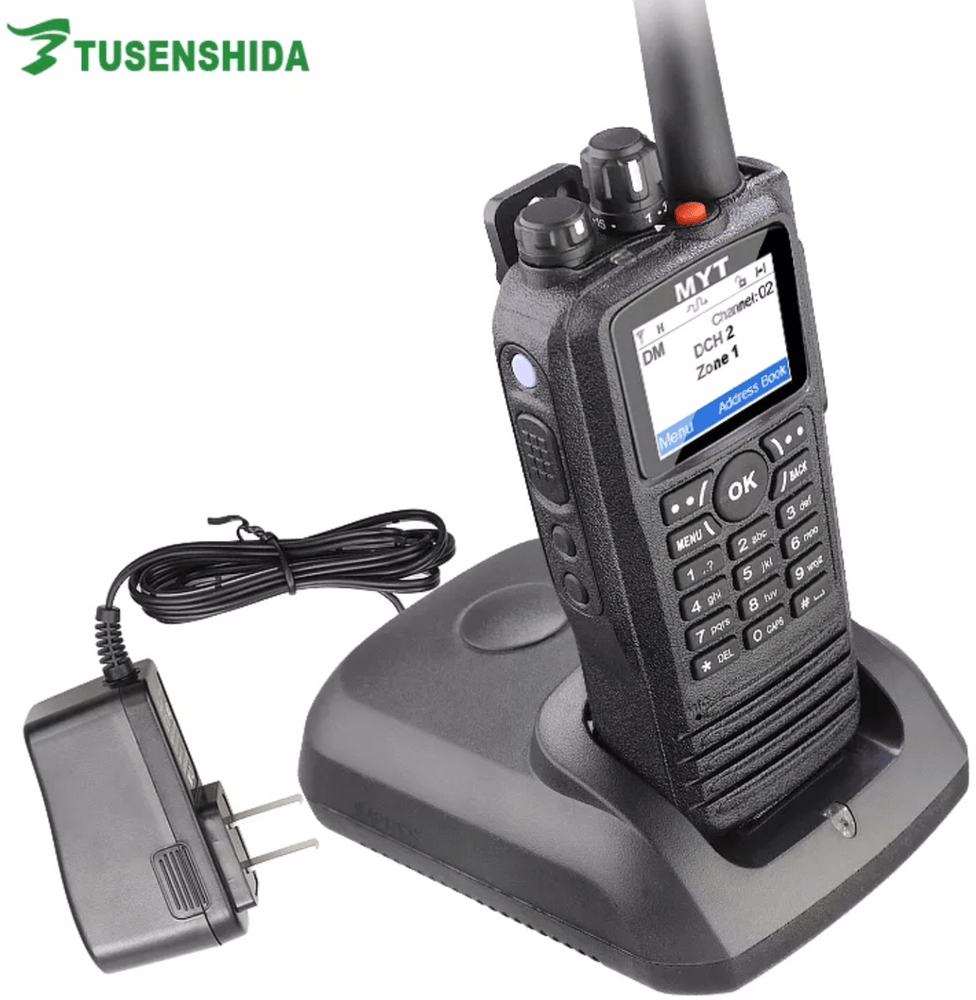

As the Baofeng DMR radio gets lots of coverage online and becomes available via eBay, Amazon and others another radio has caught my eye and appears to be available online inside the EU to something like $200 shipped with cable for programming and all usual stuff.


Features:

Compatible with Moto DMR radio in voice and message

IP65 (Dust-protection and water resistant)

CTCSS/DCS (Analog)

2 Tone (Analog)

5 Tone (Analog)

DTMF (Analog)

MDC System (Analog)

Radio Disable Decode

Remote Monitor Decode

Emergency Remote Moinot Decode

Alarm Type selective

Revert Channel

Private Call/Group Call/All Call

Emergency System

Private Call Confirmed

Battery Save/Indicator/Warning

Emergency

Monitor

Repeater Talkaround

Scan On/Off

Zone Selection

Text message

General Specifications

Power Supply 7.5V DC ±20%

Frequencies – Full Bandsplit 400~470MHz,

 Number of Channels 1000 channels

Maximum number of Zones 250

Maximum number of Channels Per Zone 16

Channel Spacing 12.5/25kHz

Operating Temperature -30C~ + 60C

Dimensions: H x W x D(mm) 125*60*33mm

Weight: (gm) 270g

Battery capacity 2200mAh

Transmitter Specifications

Frequency Stability 1.25ppm

Power Output 1W(L),5W(H)

4FSK Digital Modulation 12.5KHz Data Only:7K60FXD

12.5KHz Data & Voice:7K60FXW

Digital Vocoder Type AMBE++ or SELP

Digital Protocol ETSI-TS102 361-1,-2,-3

Modulation Limiting ±2.5kHz at12.5kHz

FM Hum & Noise -40dB

Conducted/Radiated Emission -36dBm < 1GHz, -30dBm > 1GHz

Adjacent Channel Power -60dB

Adjacent Transient Channel Power -50dB

Audio Response (300-3000Hz) +1 ~ -3 dB

Audio Distortion < 5%

Receiver Specifications

Analog Sensitivity .35μV/-116dBm(20 dB SINAD) .22μV/-122dBm(12 dB SINAD)

DigitalSensitivity .3μV /-117.4dBm (BER 5%)

Intermodulation TIA603 70 dB; ETSI 65dB

Adjacent Channel Selectivity 60dB

Spurious Rejection 70 dB

Blocking 80 dB

Rated Audio 1000mW

Audio Distortion at Rated Audio 3%

Audio Response (300-3000Hz) +1 ~ -3 dB

Conducted Spurious Emission

-57 dBm<1 GHz, -47 dBm>1GHz ETS 300 086
