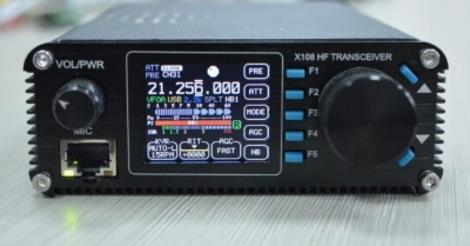

Xiegu X108

safe_image

8_1164_eca83b52d1eb096

Some people are calling it the start of a revolution in amateur radio while others are calling it a radio made by someone in there garden shed. Of course all things cause opinion and divide and this is sure what the Xiegu X108 is all about it seems.

Receiver characteristics
Low noise, single-conversion superheterodyne receiver;
Double-balanced diode mixer, providing excellent dynamic range;
Receiver sensitivity: . 0 2 uV (preamp open);
Narrow-band double-tuned band-pass filter, to achieve coverage of all amateur bands ( WARC band);
6 emission in low-pass filter, the filter function to provide excellent performance;
IF channel AGC ( AGC ), providing a constant in the amplifier gain;
Preamplifier and switchable attenuator;
Excellent performance of narrowband IF crystal filter shape factor of up to 1.7 ;
Multi VFO mode , can vary the frequency of work;
Provide S meter, power / SWR meter display;
Optional NB modules;
Optional front panel knob;

Transmitter characteristics
Power adjustable, from 1W ~ 20W ;
Dedicated RF power tube, superior performance;
High VSWR protection, durable, safe and reliable;
Stray radiation rejection: ≥ 40dBc
Standard CW amplitude newspaper;
Automatic key rate adjustable;

Receiving frequency range: 0.5 ~ 30MHz
Transmitting frequency range: all WARC bands ( HAM band)

Work mode:
SSB ( J3E )
CW ( A1A )
AM ( A3E )

Frequency Stability: 1.0 ppm @ -10 ℃ ~ +60 ℃ (standard)
0.5 ppm @ -20 ℃ ~ +75 ℃ ( military regulations, optional)
Receiver sensitivity: . 0 2 uV

Optional:
SSB 2.4kHz (-6dB)
CW 0.5kHz (-6dB)

Dynamic Range: 95dB
RF Power Output: 20W ;
Spurious rejection: ≥ 45dBc
Carrier suppression: ≥ 45dBc
Antenna Port Impedance: 50 Omega
Operating voltage: 12.5V ~ 14.5V DC ;

Current
Receive 0. 75 ​​A ( Max )
Transmitter 7A ( Max )

With multifunction digital microphone in hand, can achieve full function control, such as digital set-frequency operation;
Equipped with a USB port for easy connection to PC end, realize software control;
32 channel storage;
RIT fine-tuning;
Front panel to protect the handle (optional);
Dimension: 120 * 45 * 180 ( mm )

You can find them now for around 310 euro from China plus all the import taxes and duties. But looks something for sure that is bound to cause as much interest as it is controversy. Please google search for more information it is all out there including Brick O lore who has an amazing source and selection of news and views about this radio.
