Yosan Micro “Inside” Look

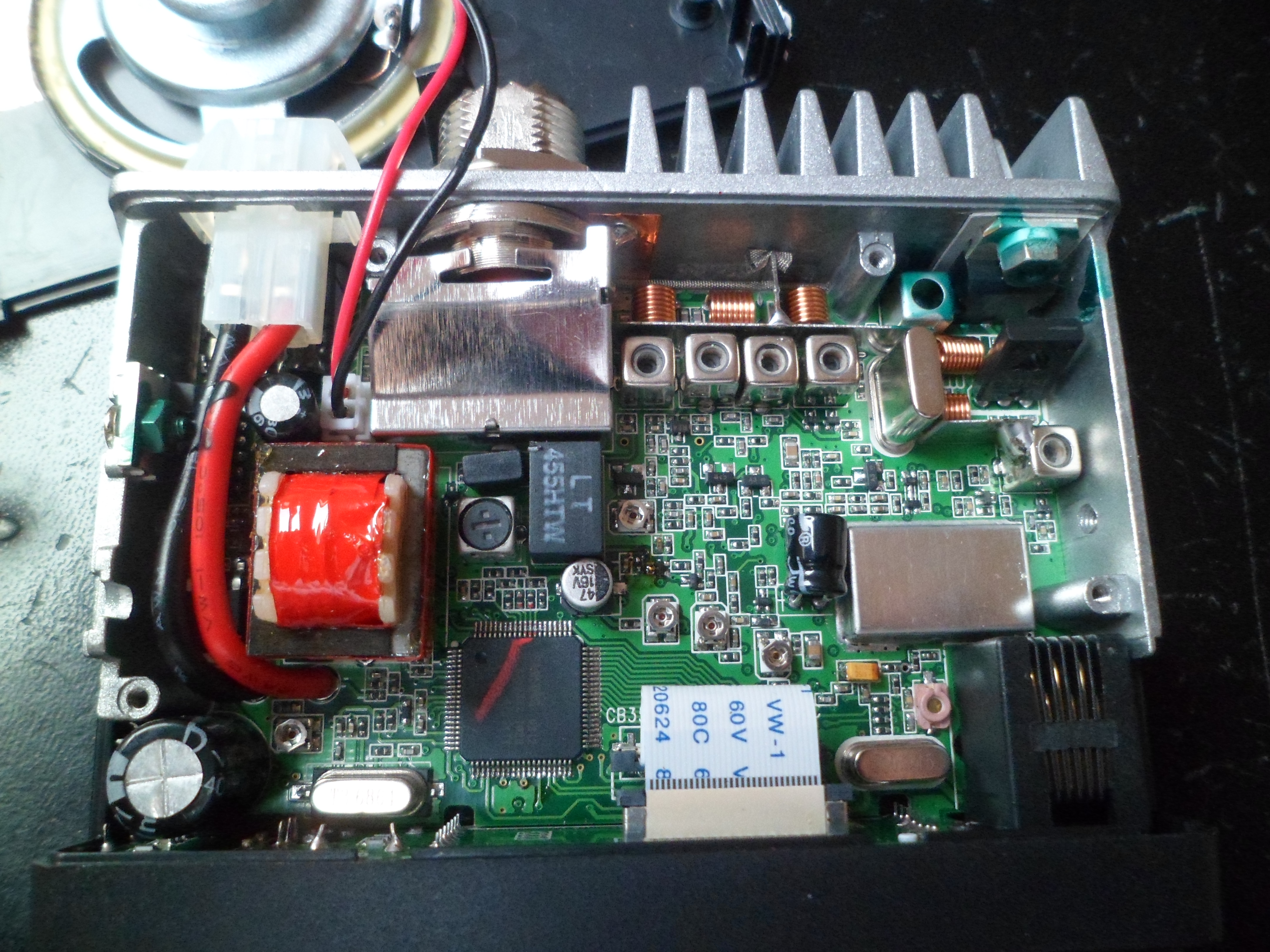

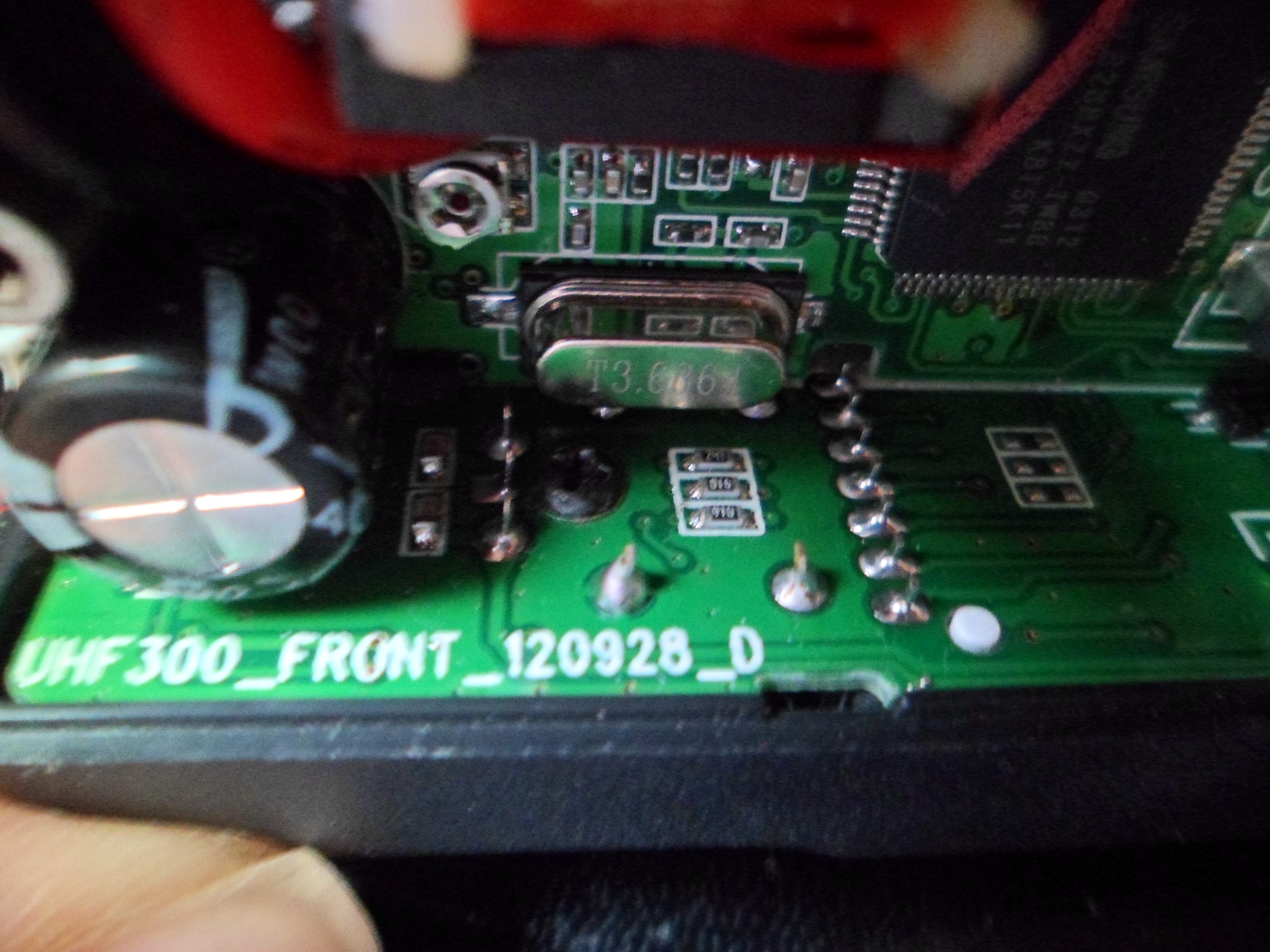

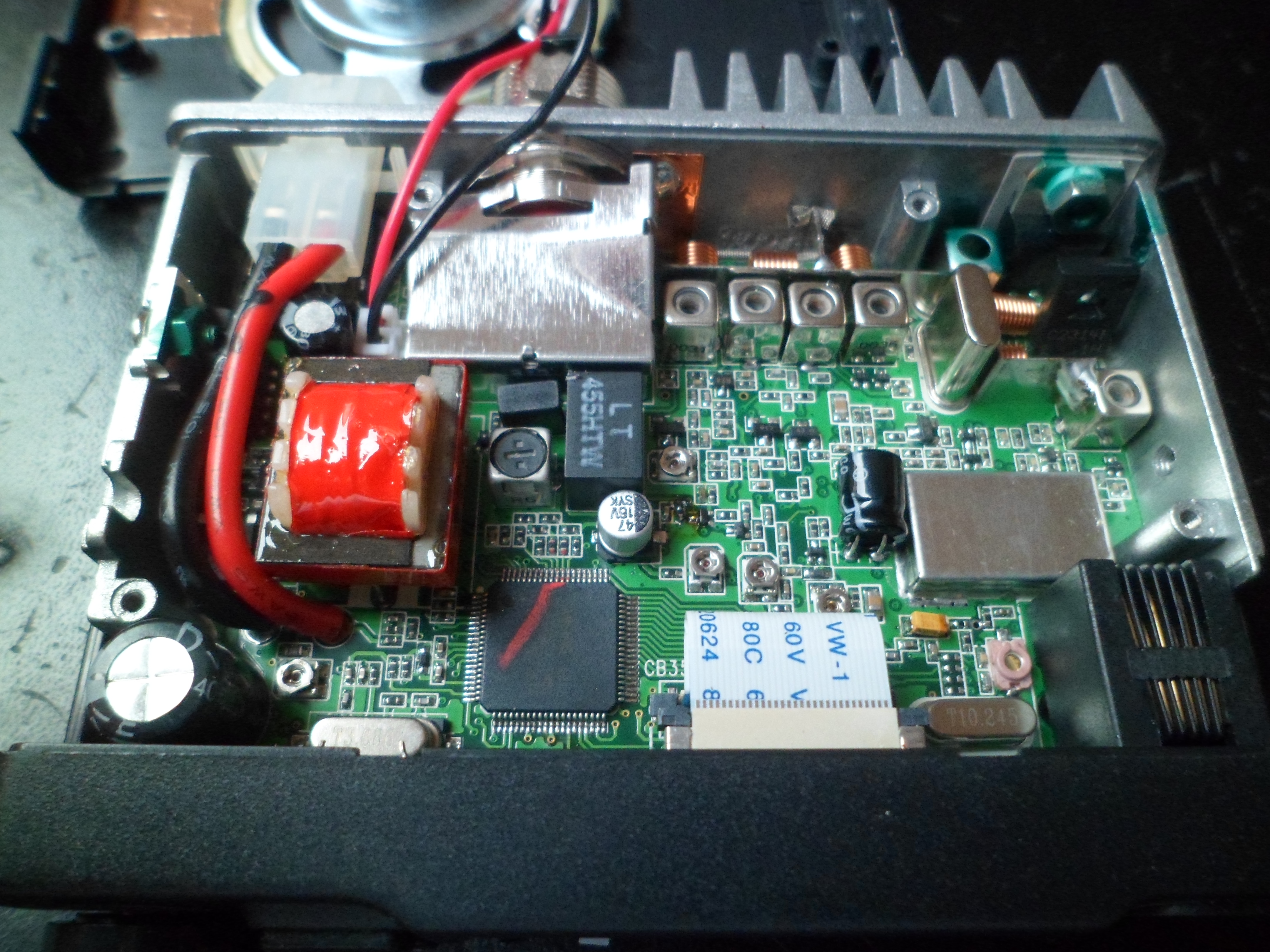

A long time coming but finally it is here, we cut the warranty sticker from Telesputnik and have looked inside the Micro. The radio has two board types, the display is from the UHF300 series and the base board is the CB350 that was used in the past with Megajet. But how to modify it? That’s the question as SO small on the inside.

SAM_0006SAM_0004

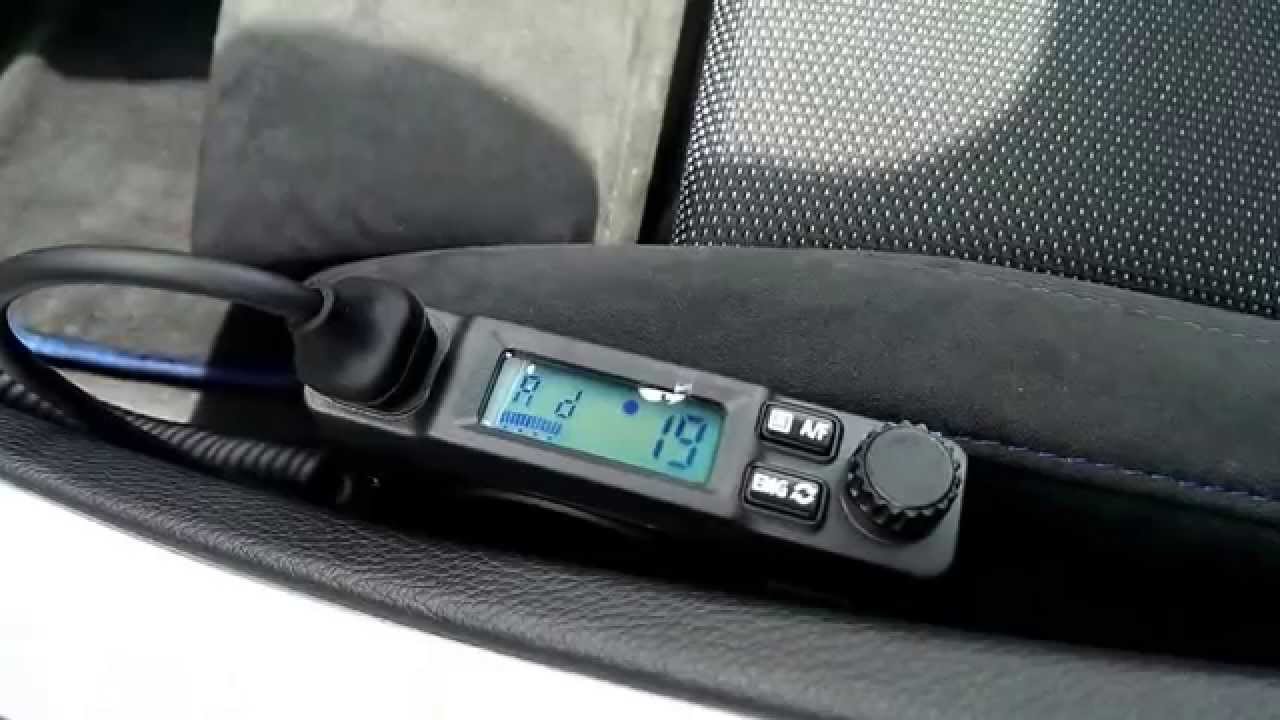

SAM_0009maxresdefault

Interesting features include the flip, so no matter what way up the radio is the display is there ready for action and the right way up. Scan, multi-norm settings (FM only UK CEPT) Auto Squelch and 7 colour display with the ability of 12w power. Now how it is done is smoke and mirrors as so small a radio.

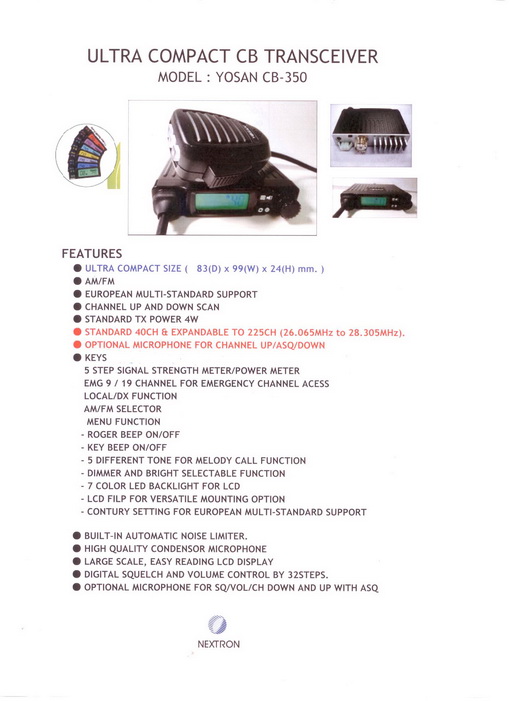

350350_001

All Rights Reserved (c) http://www.simonthewizard.com 2013-2014-2015 Unathorised Use / Or Duplication of this material without express and written permission from this blog’s author is strictly prohibited. Excerpts and links may be used, provided that full and clear credit is given to simonthewizard and http://www.simonthewizard.com with appropriate and specific direction to the original content.

2 thoughts on “Yosan Micro “Inside” Look

    • I can’t see anything at all either. I think power will be close a jumper and channels maybe jumper on the display board but at the moment I see absolutely nothing at all 😇
